Facade wall module TOPWALL | Modulbau

Today, modular construction is a global trend that is gaining more and more popularity in Of Russia. In the face of increasing competition in the construction market, tight deadlines, and labor shortages, Modulbau creates new solutions for the modern developer.

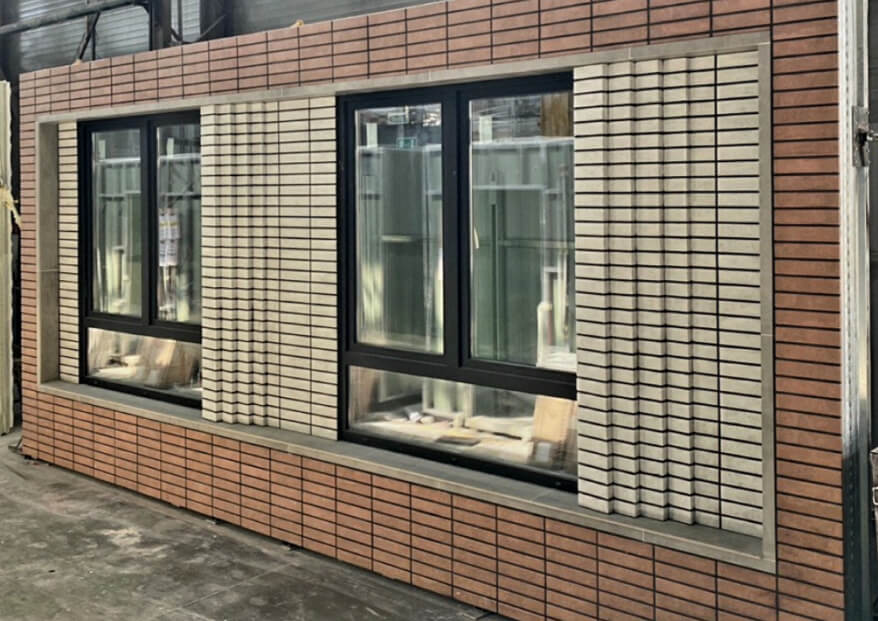

The TOPWALL facade wall module (FSM) is a complete system, fully ready for installation at the facility, consisting of a power frame with a thermal insulation layer, an enclosing structure and cladding elements. The enclosing structure in the module is an internal cladding made of lightweight concrete, which ensures the module's resistance to bending moments and is the basis for interior decoration of the room. This feature of the prefab product (an element of factory readiness) allows you to eliminate wet processes in the construction of the facade of the building in building conditions, after installing the module, proceed to the finishing of the room, and also due to the completeness of the system without additional masonry work, increase the selling area without any losses.

The composition of the facade module:

• LSTK power frame
• thermal insulation layer
• vapor barrier layer
• the inner lining is made of lightweight concrete
• windproof layer
• crate/subsystem
• cladding

All structural parts of the FSM are assembled at the factory. Complete production assembly allows you to achieve high quality products. Maintaining the claimed quality is an operation of constant analysis and monitoring, as well as the result of a gradual transition from manual labor to automation. Reducing the human factor in the main production operations, reducing the assembly time of the prefab element without loss of quality, searching for new effective materials and their use in the product in compliance with all safety requirements are the main guidelines of the company.

The module is designed for the customer's facility and can have any size and finish or cladding parameters. The variety of finishes of the TOPWALL facade wall module makes it possible to bring to life the most complex architectural forms, curved surfaces made of metal and wood, and much more.

The facade wall module is transported by low-frame platforms, the modules are placed in special cassette forms to preserve the integrity of the structure. The installation is all-season. The installation time of one module is 30 minutes, a team of four people is enough.

Stages of installation:

1. Geodetic marking
2. Installation of fasteners
3. Module installation

MODULBAU is the main activist for the promotion of prefab products in the construction market. With each new object in development, product variability increases, related products and solutions appear, experience and knowledge base grow, which are simultaneously translated at the level of standardization and legislation. A separate area of the company as a system holder is the development of norms and rules when working with facade wall modules, namely: design principles, general requirements for the structure and materials of the composition, application guidelines and installation technology. The development of a regulatory framework will allow design institutes to correctly calculate buildings using modular facades, the development of installation rules will enable contractors to mount structures without loss of manufacturability, and give architects confidence in the implementation of ambitious large-scale projects.
