In cases where high specific power and temperature resistance are required for de—icing systems, heating of adjacent territories and in tanks, special constant-power cables are used in industrial electric heating systems - resistive heating cables.
A constant-power cable has a constant resistance and is a metal core covered with a layer of insulating material. The metal core has a predetermined high resistance and therefore heats up equally along its entire length. For this reason, it is necessary to carefully monitor the temperature regime in which it operates.
The resistance of this cable and its heating capacity are almost constant with any changes in ambient temperature.
In order for the heating system with such a cable to work normally, it is necessary to connect the power supply to the cable through a temperature controller, as well as install temperature sensors.
Its integrity must not be compromised during installation, as the cable is sold in sections of a certain fixed length.
A distinctive feature of the SHTL HT resistive cable is not only its versatility in use for architectural and industrial heating systems, but also its resistance to high temperatures, which allows the cable to be laid even in hot asphalt. This solution helps to avoid the stage of preparing the installation surface for heating areas adjacent to buildings, sidewalks and parking areas. This significantly reduces the installation time, the need for human and economic resources, and thus reduces the cost of construction.
One of the main purposes of SHTL HT is de—icing systems to prevent icing of outdoor areas during the winter period of outdoor areas, ramps, steps, driveways, etc. It effectively solves the problem of snowmelt for runways, difficult sections of roads, treadmills, and sports fields.
The use of outdoor de-icing systems ensures:
- Safety of movement of people and transport;
- Fast removal of snow and ice from paths, ramps, steps and any other open areas;
- Elimination of labor-intensive and dangerous mechanical cleaning for coatings;
- Increase the service life of the road surface several times.
The service life of such a cable is 25 years, and the warranty period is 5 years.
Such high deadlines are due to the fact that 100% of the company's products are tested and quality controlled before going on sale.

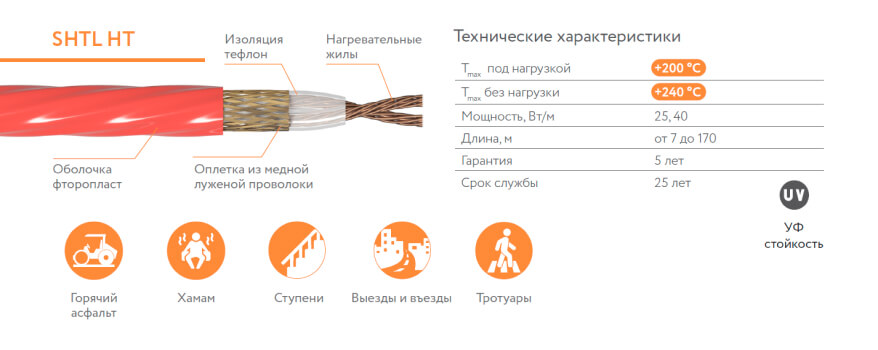

The SHTL HT resistive heating cable is a constant-power cable that has a constant, constant resistance along its entire length.
Advantages:
- Maintaining high temperature characteristics of heated pipelines and facilities;
- Heating of products in pipelines and initial preheating;
- High specific heat generation;
- Stable performance throughout the entire service life;
- Increased resistance to mechanical and thermal influences
Application:
- Roof and gutter heating
- Burnt open areas, ramps
- Step heating
- Heating of exits and entrances
- Sidewalk heating
- Freezer heating
- Ground heating
- Use in hammam and saunas
- For laying in hot asphalt
Power: 25, 40 W/m
Permissible operating temperature on the shell: +200 °C.
This temperature threshold allows the SHTL HT cable to be laid in hot asphalt, which significantly reduces labor costs and construction time for parking lots, roads, sidewalks and adjacent areas.
